Sunday, 20 July 2014

Setup Release Management Client

This is the second step of setting up VS 2013 Release Management environment. Prerequisite for this step is Release Management Server which is described here.
Trial version of VS 2013 Release Management with update 2 can be downloaded from http://go.microsoft.com/?linkid=9843020.
Note: You cannot apply a license key for the trial to make it licensed version. Instead you have to uninstall trial and install licensed copy downloaded with MSDN or Volume License to apply license.

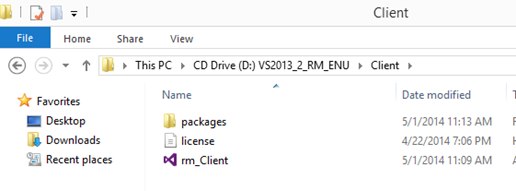

In the downloaded ISO run rm_Client.exe to install Release Management Client. This is a very quick install.
001

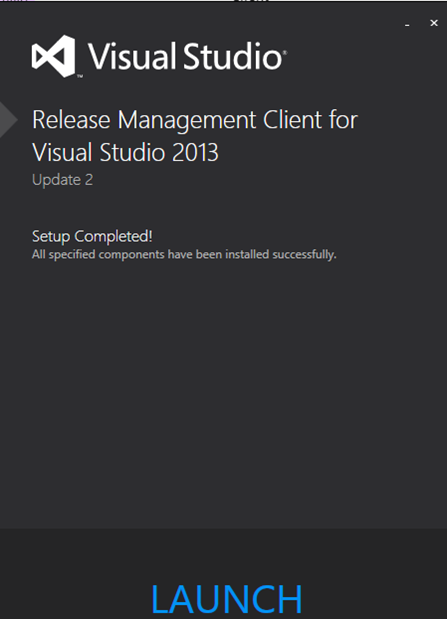

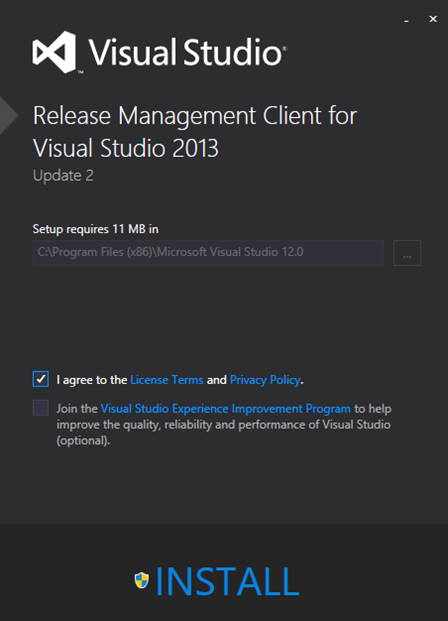

Installation is quick and smooth.

002
 003

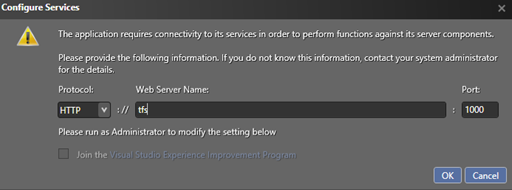

Once lunched provide the url of the release management server. example – http://ReleaseManagmentServer:1000
Below picture shows TFS since this installation of the Release Management Client is done on tfs box.

004

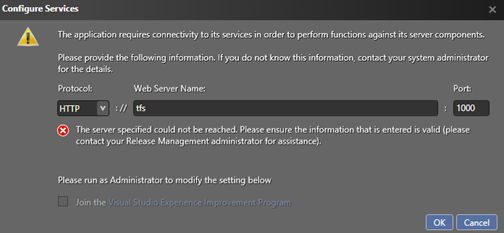

This url is correct but cannot be connected by the client.

005

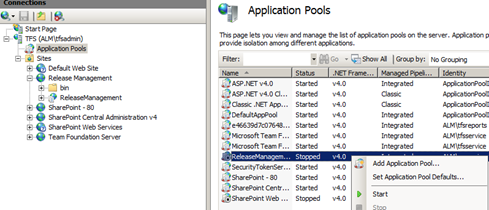

Check if Release Management Server app pool is running and if not start it.

 006

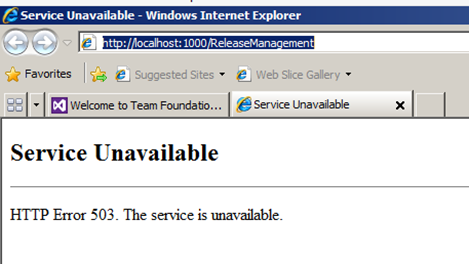

Try browsing to http://releasemanagemntserver:1000/ReleaseManagement

008

This could happen, if the Release Management Server is installed in TFS box with Sharepoint Foundation. To resolve this issue refer Release Management Server in TFS box with Sharepoint Foundation, the fix specified in there is below.

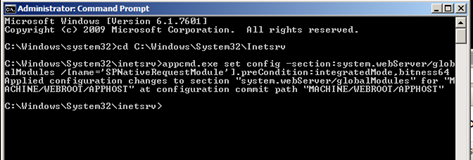

  • On the machine where the Release Management Server was installed with TFS and Sharepoint, start a Command Prompt. Run as Administrator but not sure this was required.
  • Navigate to C:\Windows\System32\Inetsrv
  • Enter the following command
    appcmd.exe set config -section:system.webServer/globalModules /[name='SPNativeRequestModule'].preCondition:integratedMode,bitness64

  • 009

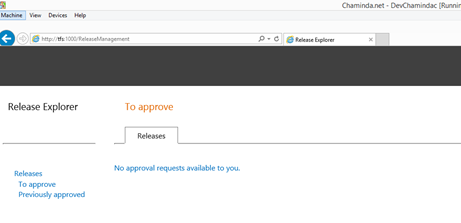

    Browsing to http://releasemanagemntserver:1000/ReleaseManagement succeeds.

    012

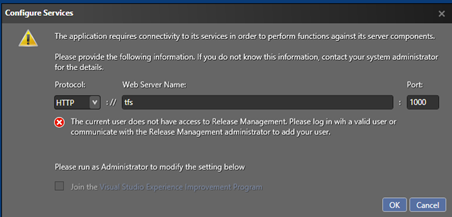

    Below error occur if the user running Release Management Client is not added as a user in Release Management Server.

    013

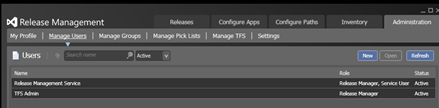

    To resolve this issue add the user to Release Management Server, users, by clicking new on Administration tab Manage Users. (To do this log on to the Release Management Client with a user already available in release management server – example - run client as installation user of release management server).

    020

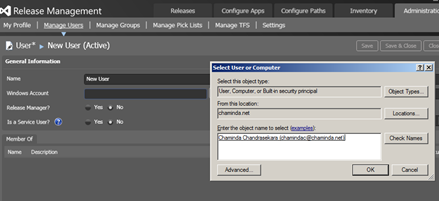

    Add the required user.

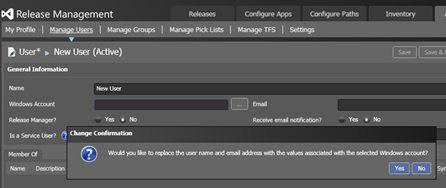

    021
     022

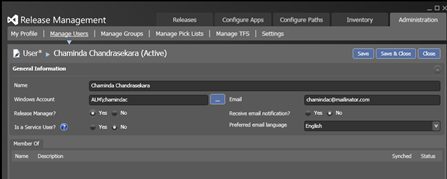

    Release manager is the super user role in Release Management Server.

    023

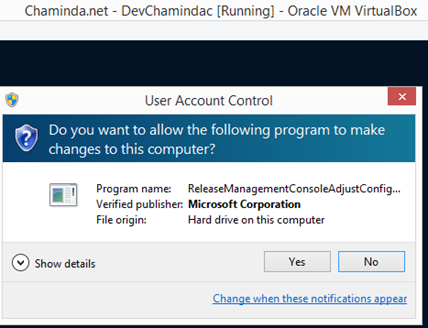

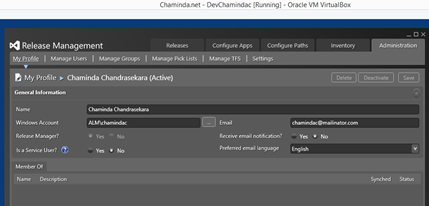

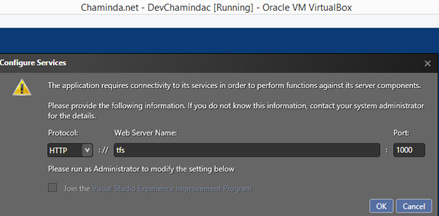

    The user should be able to connect to the Release Management Server from a remote machine using the Release Management Client.

    025
     026
     027

    We have setup a Release Management Server, and Release Management Client accessing the server from a remote machine successfully. Next step is to set up Deployment Agent(s).
