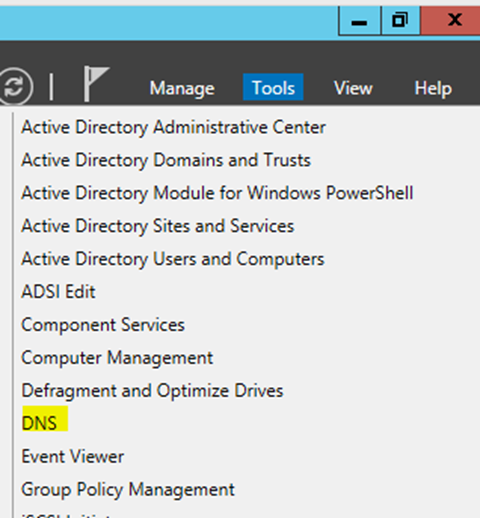

Go to the server manager of the AD server in Azure VM. Click on Toos—> DNS.
![23 23](http://lh3.ggpht.com/-TbiWeHSHW48/VR6eoFMgcUI/AAAAAAAAEV8/HDvOJcghi8Y/23_thumb%25255B1%25255D.png?imgmax=800)

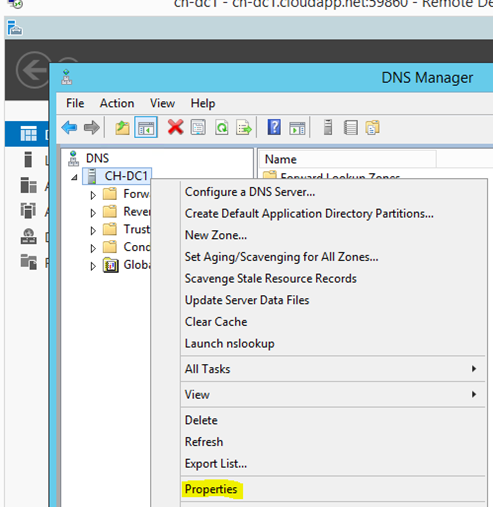

In the DNS Manager right click on Domain Controller and click on Properties.
![24 24](http://lh6.ggpht.com/-8kD-ETOdW6M/VR6erKdfi2I/AAAAAAAAEWM/QpQjk68z-8o/24_thumb%25255B1%25255D.png?imgmax=800)

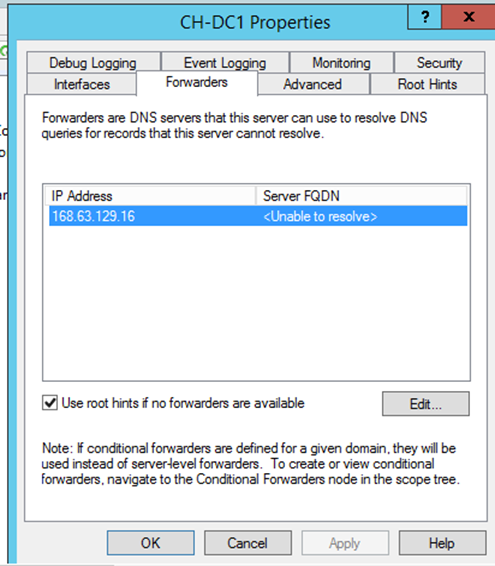

In the Forwarded tab of the Properties window click on IP address and click Edit.
![25 25](http://lh6.ggpht.com/--S9Z_zrbptg/VR6et-loKuI/AAAAAAAAEWc/_R-n2IqAY24/25_thumb%25255B1%25255D.png?imgmax=800)

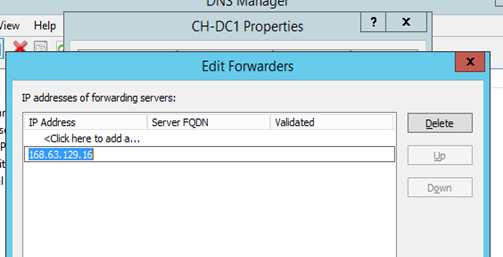

In Edit Forwarders select the IP and click Delete.
![26 26](http://lh3.ggpht.com/-u6fQ8IAOGGw/VR6evmLuFCI/AAAAAAAAEWs/TZK9Mok8RzM/26_thumb%25255B1%25255D.png?imgmax=800)
Then click OK.
![27 27](http://lh3.ggpht.com/-ezAb3cuc6aA/VR6eyGkgkyI/AAAAAAAAEW8/S3k5Zs_eBAE/27_thumb%25255B1%25255D.png?imgmax=800)

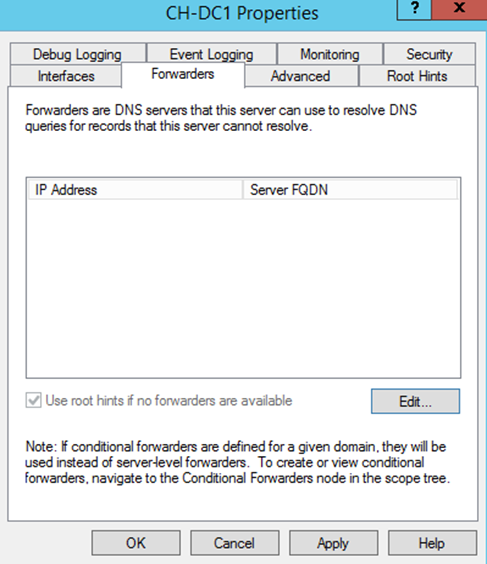

Click Apply and close DNS Properties.
![28 28](http://lh4.ggpht.com/-be_-aUWVKMk/VR6e0vhfGtI/AAAAAAAAEXM/JW5M20rr8UI/28_thumb%25255B1%25255D.png?imgmax=800)

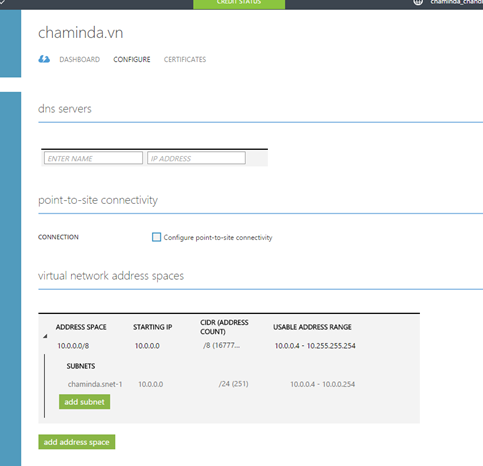

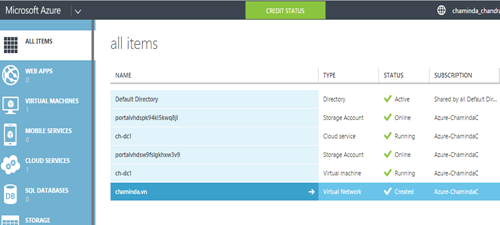

Now go to the Azure Management portal click on the Virtual Network and go to Configure tab.
![29 29](http://lh4.ggpht.com/-5m4bZUSa6Ac/VR6e2scnmCI/AAAAAAAAEXc/oyap-vWirHk/29_thumb%25255B3%25255D.png?imgmax=800)
![30 30](http://lh4.ggpht.com/-qU_aYspzpPc/VR6e5GdlEFI/AAAAAAAAEXs/yqqRodgO8N0/30_thumb%25255B1%25255D.png?imgmax=800)

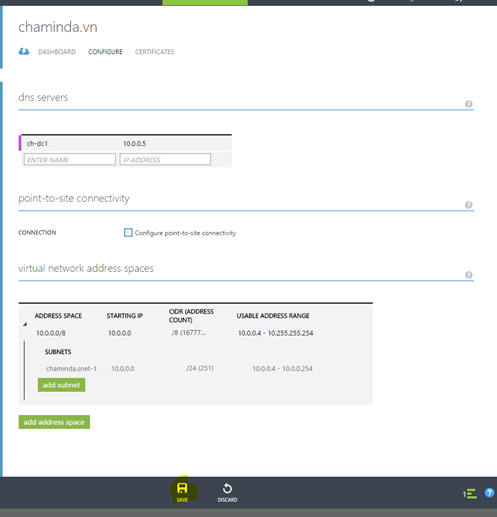

In the dns servers provide Domain Controller name and the static internal IP assigned to it. Click on Save.
![31 31](http://lh4.ggpht.com/-BFVnFrBczDI/VR6e7n7TvfI/AAAAAAAAEX8/HAsaLieDKVg/31_thumb%25255B1%25255D.png?imgmax=800)

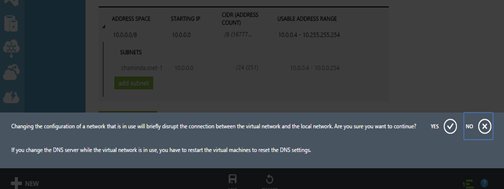

Click Yes for the below message.
![32 32](http://lh6.ggpht.com/-_kHOHjzwxK0/VR6e92kUmmI/AAAAAAAAEYM/mEztIUKlItc/32_thumb%25255B1%25255D.png?imgmax=800)

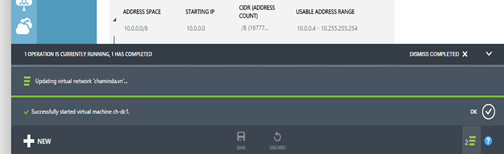

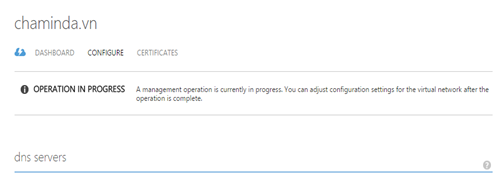

This will update the Virtual Network
![33 33](http://lh6.ggpht.com/-QHNSgNcXjYk/VR6e_9zcsUI/AAAAAAAAEYc/tKilG07DfaU/33_thumb%25255B1%25255D.png?imgmax=800)
![34 34](http://lh5.ggpht.com/-v-xgwwD0QvY/VR6fBhYosiI/AAAAAAAAEYs/oUQTtt-ejbc/34_thumb%25255B1%25255D.png?imgmax=800)
![35 35](http://lh4.ggpht.com/-8YYzTYKoKXA/VR6fD0pGHhI/AAAAAAAAEY8/oMXNlbtyL4o/35_thumb%25255B1%25255D.png?imgmax=800)

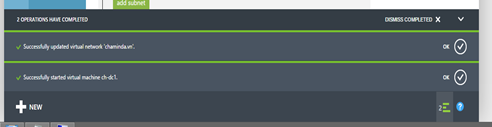

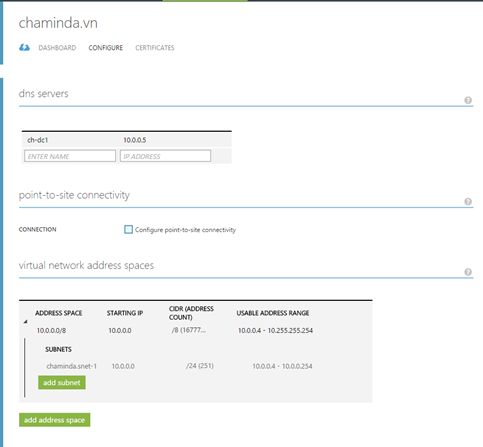

DNS setup done for the Virtual network.
![36 36](http://lh3.ggpht.com/-kMmeB06XdR0/VR6fHRy7P0I/AAAAAAAAEZM/y4RrGBSdQAo/36_thumb%25255B1%25255D.png?imgmax=800)
