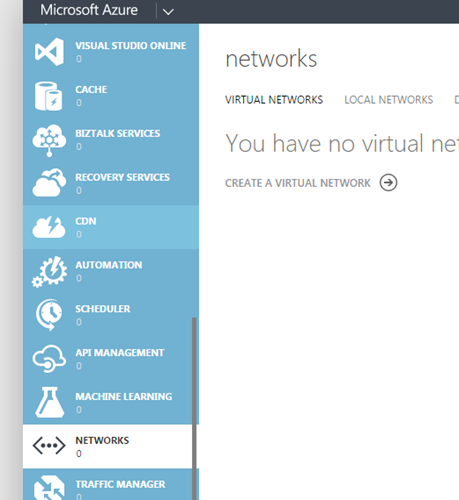

In Azure Management Portal go to Networks and click on Create a Virtual Network.
![01 01](http://lh4.ggpht.com/-nY6jngXlr-w/VPGwCsVkjeI/AAAAAAAAEE8/n43K3X2jJwM/01_thumb%25255B1%25255D.png?imgmax=800)

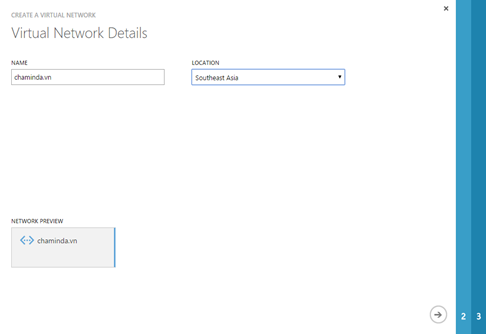

Provide a name for the Virtual Network and select the closest region.
![02 02](http://lh6.ggpht.com/-BXI-nx7HlEM/VPGwEN-oX6I/AAAAAAAAEFM/Mu1FOq9N5cs/02_thumb%25255B1%25255D.png?imgmax=800)

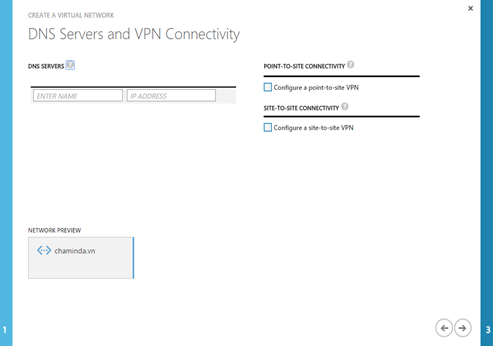

Keep the DNS Server and VPN Connectivity empty for the time being since after setting up AD in and DNS server this can be configured later.
![03 03](http://lh6.ggpht.com/-g1ms-fRSfxw/VPGwFlrKIsI/AAAAAAAAEFc/saVTXZn2t50/03_thumb%25255B2%25255D.png?imgmax=800)
Set 256/24 for Classless Inter-Domain Routing (CIDR). More information on CIDR can be found in below links.
http://en.wikipedia.org/wiki/Classless_Inter-Domain_Routing
http://searchnetworking.techtarget.com/definition/CIDR
http://compnetworking.about.com/od/workingwithipaddresses/a/cidr_notation.htm
![04 04](http://lh6.ggpht.com/-vNZxeLcMwIE/VPGwHJIcAeI/AAAAAAAAEFs/dluNkRZw2NI/04_thumb%25255B1%25255D.png?imgmax=800)
Once the final step of wizard submitted, the Virtual Network creation starts.
![05 05](http://lh5.ggpht.com/-sC2I7__PxrQ/VPGwIuAlr2I/AAAAAAAAEF8/9qlzGu09MKI/05_thumb%25255B1%25255D.png?imgmax=800)

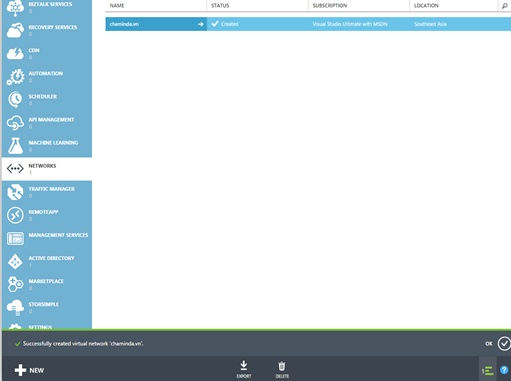

In few minutes Virtual Network is ready for use.
![06 06](http://lh3.ggpht.com/-hji8brp0BDA/VPGwKKNFJaI/AAAAAAAAEGM/3Jms-AfFLnU/06_thumb%25255B1%25255D.png?imgmax=800)
