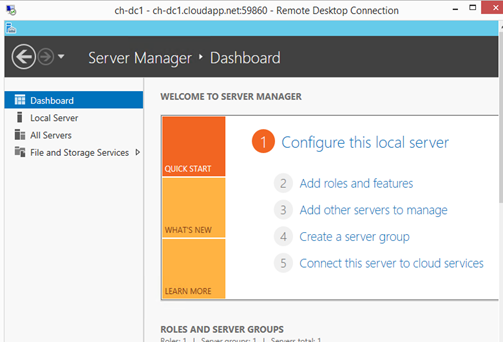

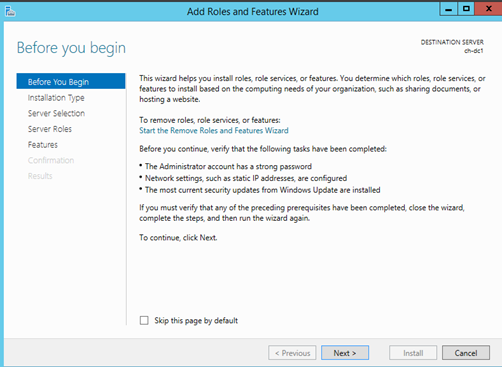

In Server manger in the Azure VM created click on Add roles and features.
![01 01](http://lh3.ggpht.com/-MJzGmkJm34M/VRlk8WeQzgI/AAAAAAAAEPw/4qJ_LoyTYGY/01_thumb%25255B1%25255D.png?imgmax=800)
![02 02](http://lh4.ggpht.com/-prwl3GB4988/VRllAPu-JPI/AAAAAAAAEQA/_0tpAIIpoVc/02_thumb%25255B1%25255D.png?imgmax=800)

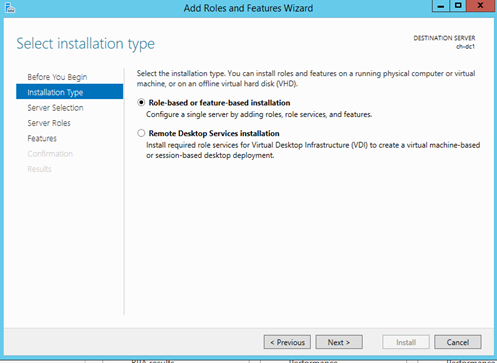

Select Role –based or feature-based installation.
![03 03](http://lh6.ggpht.com/-COKDKmB03nI/VRllDmlShzI/AAAAAAAAEQQ/uquRXDCzLKw/03_thumb%25255B1%25255D.png?imgmax=800)

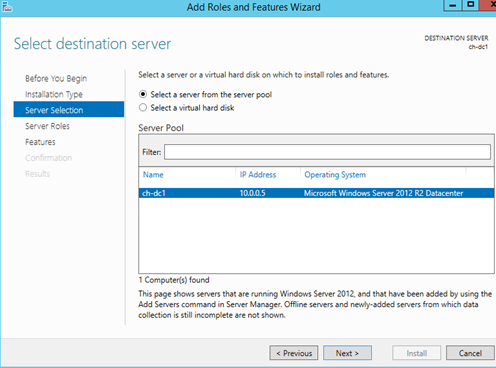

Select the server. Note the static IP set in “Adding Static Internal IP to Azure VM”.
![04 04](http://lh4.ggpht.com/-r_IwSfSF1fw/VRllG8uPRFI/AAAAAAAAEQg/SmbA9T-ohsg/04_thumb%25255B1%25255D.png?imgmax=800)

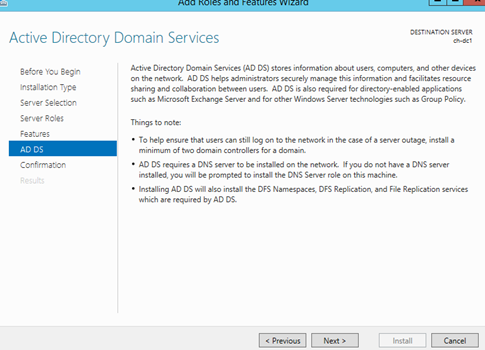

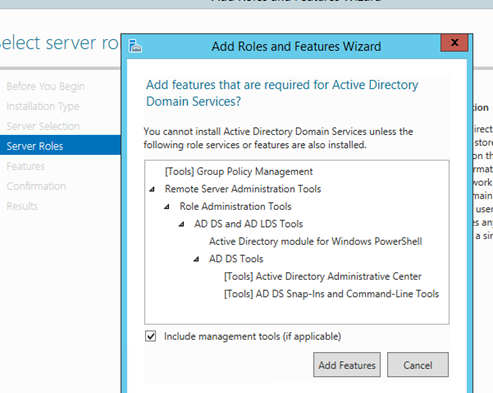

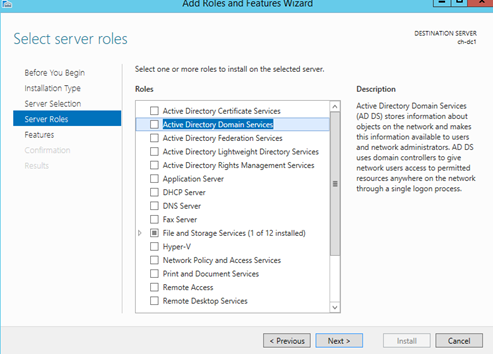

Select Active Directory Domain Services.
![05 05](http://lh3.ggpht.com/-bErpXNdUtm0/VRllK6peiMI/AAAAAAAAEQw/UVm9GESBuHI/05_thumb%25255B1%25255D.png?imgmax=800)
![06 06](http://lh4.ggpht.com/-DZ1ebmYim0M/VRllN2PHYHI/AAAAAAAAERA/i21r6C4-ITE/06_thumb%25255B1%25255D.png?imgmax=800)
![07 07](http://lh3.ggpht.com/-IKQT9ntpQhc/VRllSAUFqWI/AAAAAAAAERQ/6j3bkB7gmYc/07_thumb%25255B2%25255D.png?imgmax=800)
![08 08](http://lh3.ggpht.com/-9d-awgplwGc/VRllWKYhXII/AAAAAAAAERg/kfBbT_xnFdg/08_thumb%25255B1%25255D.png?imgmax=800)

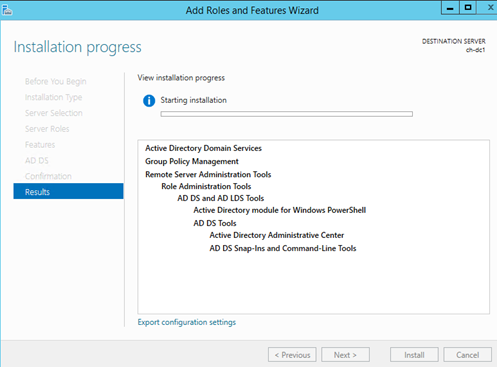

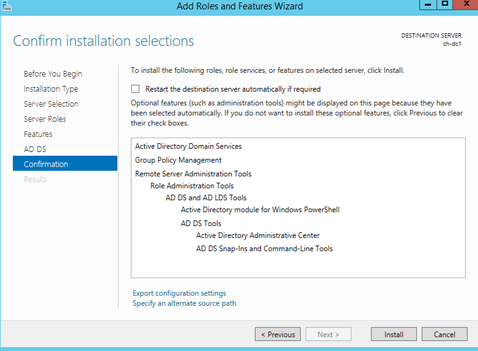

Click Install.
![09 09](http://lh3.ggpht.com/-eCKIMepqxcU/VRllaIgRJAI/AAAAAAAAERw/1hfJVV9zRdg/09_thumb%25255B1%25255D.png?imgmax=800)
![10 10](http://lh3.ggpht.com/-FL4Tm71b-Qs/VRlldVqYSFI/AAAAAAAAESA/72Atxw5ITVw/10_thumb%25255B1%25255D.png?imgmax=800)

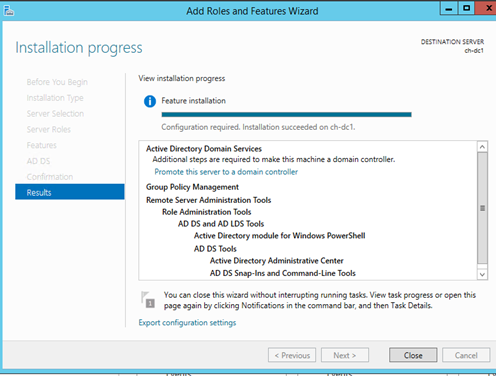

Click on Promote this server to a domain controller.
![11 11](http://lh3.ggpht.com/-M5Py97DhOis/VRllgp7bjGI/AAAAAAAAESQ/751EDiORfWM/11_thumb%25255B2%25255D.png?imgmax=800)

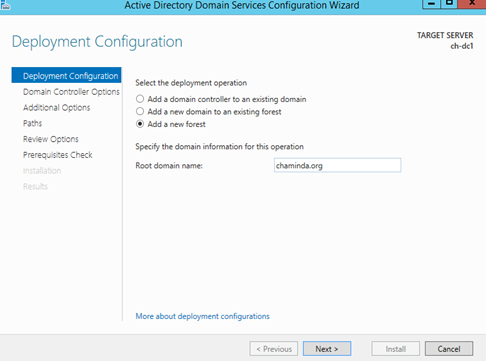

In Deployment Configuration select Add a new forest and provide a root domain name.
![12 12](http://lh6.ggpht.com/-Mvu5hehNVgc/VRllkBoQPMI/AAAAAAAAESg/eqXvWLQQFDs/12_thumb%25255B1%25255D.png?imgmax=800)

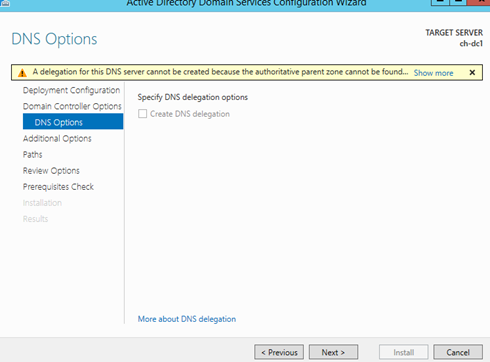

Skip DNS options by clicking next. This can be set up later.
![13 13](http://lh4.ggpht.com/-RiAnuJc22co/VRllnF5eJ8I/AAAAAAAAESw/Y7fBv0SIunE/13_thumb%25255B1%25255D.png?imgmax=800)

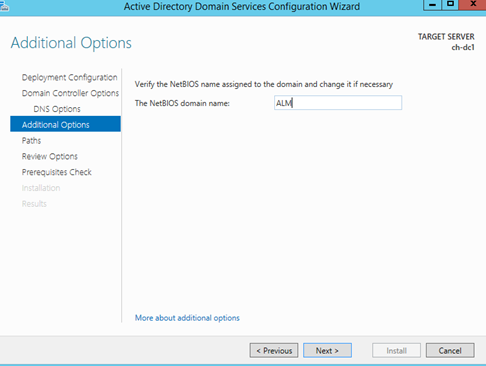

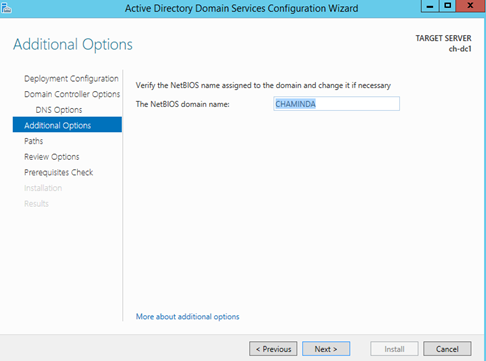

Provide a NetBIOS name.
![14 14](http://lh6.ggpht.com/-zEOw9UAkU-4/VRllqINoAiI/AAAAAAAAETA/KK3Ux1pmFxY/14_thumb%25255B1%25255D.png?imgmax=800)
![15 15](http://lh6.ggpht.com/-6iuj1Hdtmdo/VRlltC1UYII/AAAAAAAAETQ/dVIV0X_hIWQ/15_thumb%25255B1%25255D.png?imgmax=800)
Specify paths.
![16 16](http://lh5.ggpht.com/-LqlZqyCuhb8/VRllwTMehhI/AAAAAAAAETg/_V3hxRgAt6w/16_thumb%25255B1%25255D.png?imgmax=800)

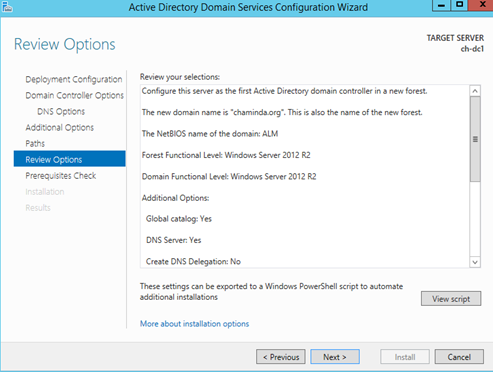

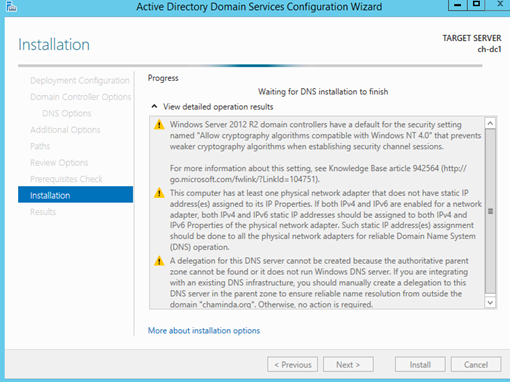

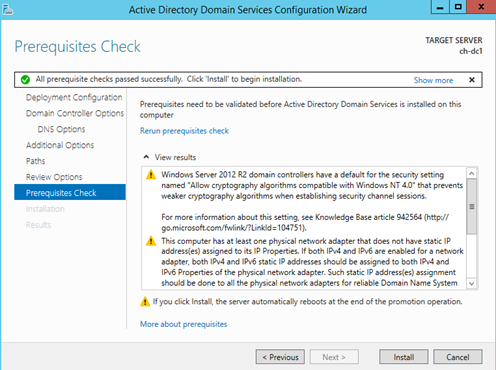

Review and Install. Ignore DNS warnings as it can be setup later.
![17 17](http://lh3.ggpht.com/-6GkIFkuhTjg/VRll0TdYXHI/AAAAAAAAETw/3GQtlPSfTbI/17_thumb%25255B1%25255D.png?imgmax=800)
![18 18](http://lh5.ggpht.com/-OovH11vUNcY/VRll4kg1h2I/AAAAAAAAEUA/SievwgPtP7w/18_thumb%25255B1%25255D.png?imgmax=800)
![19 19](http://lh4.ggpht.com/-SdBWEErZM_w/VRll9E3q05I/AAAAAAAAEUQ/ynaEUyX05qc/19_thumb%25255B1%25255D.png?imgmax=800)

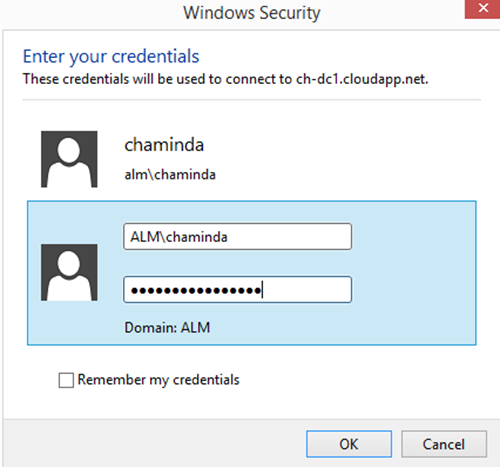

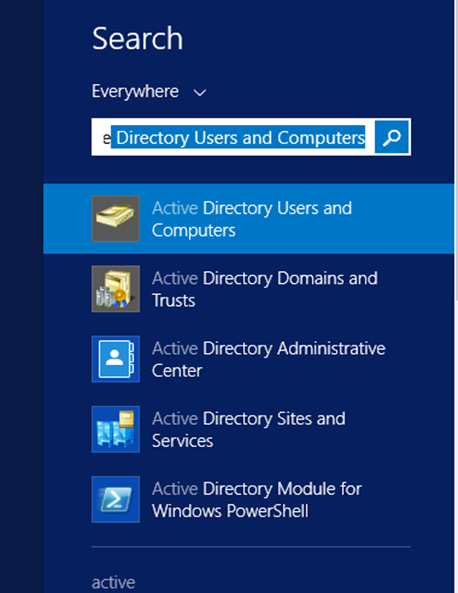

Once setup completed and restarted can be logged in to the server using Administrator password provided for the machine, which will be valid for the domain administrator.
![20 20](http://lh6.ggpht.com/-7Hfe7XNDc0o/VRll_Z4fAmI/AAAAAAAAEUg/dJgXSeGMsbw/20_thumb%25255B1%25255D.png?imgmax=800)
![21 21](http://lh5.ggpht.com/-I5w9bY3ZfA0/VRlmCZz-jfI/AAAAAAAAEUw/NJNbdRW9p2A/21_thumb%25255B2%25255D.png?imgmax=800)
