Trial version of VS 2013 Release Management with update 2 can be downloaded from http://go.microsoft.com/?linkid=9843020.
Note: You cannot apply a license key for the trial to make it licensed version. Instead you have to uninstall trial and install licensed copy downloaded with MSDN or Volume License to apply license.

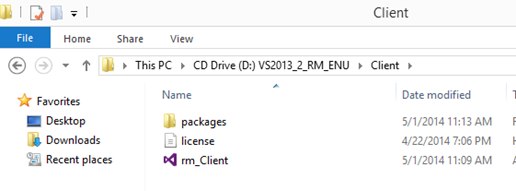

In the downloaded ISO run rm_Client.exe to install Release Management Client. This is a very quick install.
![001 001](http://lh5.ggpht.com/-VejEe6joXRs/U8vRO0IKuKI/AAAAAAAACio/i5swWAPW_dg/001_thumb.png?imgmax=800)

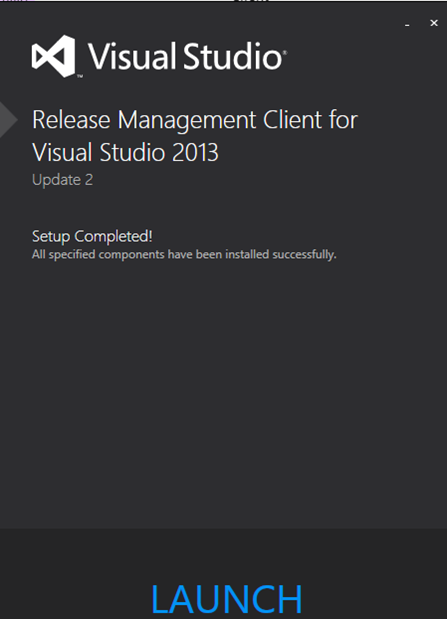

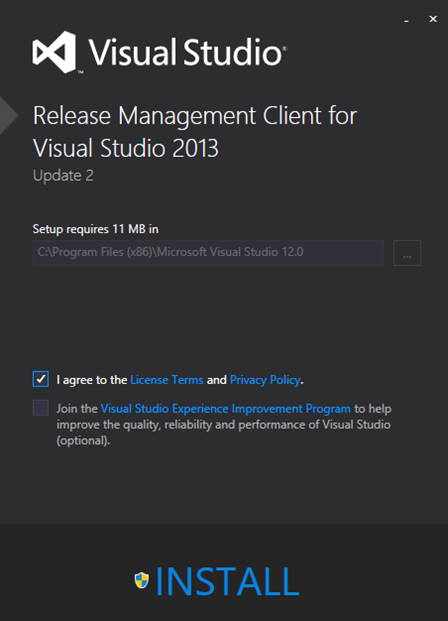

Installation is quick and smooth.
![002 002](http://lh6.ggpht.com/-qxA_1tMIoIA/U8vQe22nROI/AAAAAAAACeY/oruhCe203Rk/002_thumb%25255B2%25255D.png?imgmax=800)
![003 003](http://lh4.ggpht.com/-WdNiUmBFMsQ/U8vQgRj3LKI/AAAAAAAACeo/eTYaSvDLVGs/003_thumb%25255B3%25255D.png?imgmax=800)

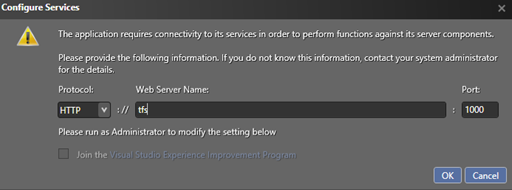

Once lunched provide the url of the release management server. example – http://ReleaseManagmentServer:1000
Below picture shows TFS since this installation of the Release Management Client is done on tfs box.
![004 004](http://lh3.ggpht.com/-Ab8kbhW_190/U8vRRvgFjeI/AAAAAAAACjA/mM7aKQL6eQQ/004_thumb%25255B3%25255D.png?imgmax=800)

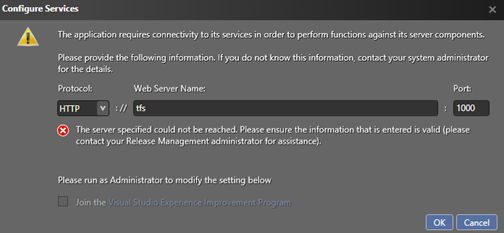

This url is correct but cannot be connected by the client.
![005 005](http://lh3.ggpht.com/-cq9sAtATtQI/U8vQknJZmtI/AAAAAAAACjQ/RIzGFYGFY4M/005_thumb%25255B2%25255D.png?imgmax=800)

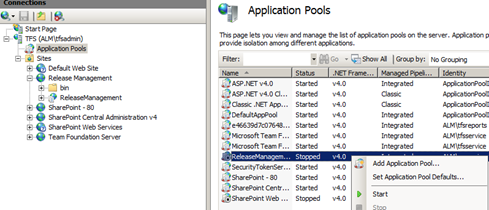

Check if Release Management Server app pool is running and if not start it.
![006 006](http://lh3.ggpht.com/-YqQ_tIT4KrM/U8vRXd-i4YI/AAAAAAAACjo/Gto94aJZd04/006_thumb%25255B2%25255D.png?imgmax=800)

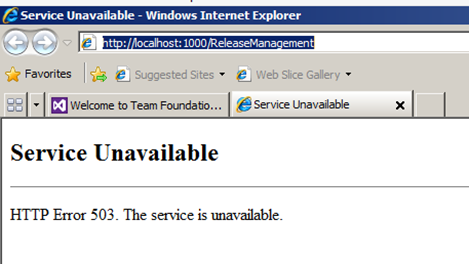

Try browsing to http://releasemanagemntserver:1000/ReleaseManagement
![008 008](http://lh4.ggpht.com/-LJ6UCD4sxGc/U8vQnmwGGoI/AAAAAAAACfo/i1Shy__8JRM/008_thumb%25255B1%25255D.png?imgmax=800)
This could happen, if the Release Management Server is installed in TFS box with Sharepoint Foundation. To resolve this issue refer Release Management Server in TFS box with Sharepoint Foundation, the fix specified in there is below.

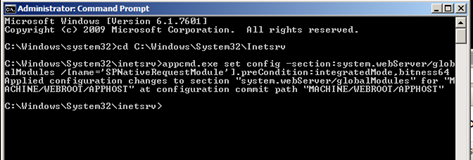

appcmd.exe set config -section:system.webServer/globalModules /[name='SPNativeRequestModule'].preCondition:integratedMode,bitness64
![009 009](http://lh6.ggpht.com/-q51CkhGPTA4/U8vQpH9uAwI/AAAAAAAACf4/HdIi7GOsC0E/009_thumb%25255B2%25255D.png?imgmax=800)

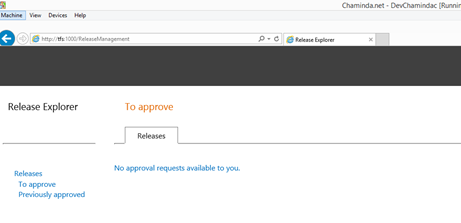

Browsing to http://releasemanagemntserver:1000/ReleaseManagement succeeds.
![012 012](http://lh4.ggpht.com/-pfWFz3ZSBfw/U8vQqkz-AqI/AAAAAAAACgI/_aZzodRXhBM/012_thumb%25255B1%25255D.png?imgmax=800)

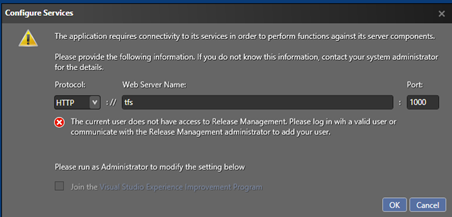

Below error occur if the user running Release Management Client is not added as a user in Release Management Server.
![013 013](http://lh6.ggpht.com/-JN-ZZHSu338/U8vQs4HjDyI/AAAAAAAACgY/RCdWbJ84vlQ/013_thumb%25255B1%25255D.png?imgmax=800)

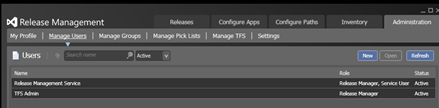

To resolve this issue add the user to Release Management Server, users, by clicking new on Administration tab Manage Users. (To do this log on to the Release Management Client with a user already available in release management server – example - run client as installation user of release management server).
![020 020](http://lh3.ggpht.com/-CPk1vjMlI7M/U8vQucvu9fI/AAAAAAAACgo/PmU2Z3wQPWA/020_thumb%25255B1%25255D.png?imgmax=800)

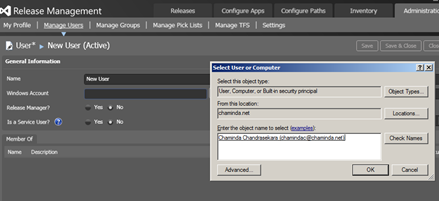

Add the required user.

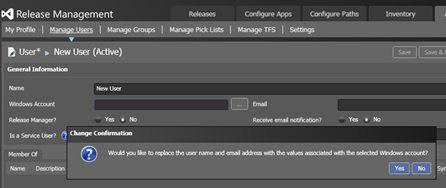

![021 021](http://lh4.ggpht.com/-_76mLueEQsM/U8vQyckfSaI/AAAAAAAACg4/ha-vFYDkGoQ/021_thumb%25255B1%25255D.png?imgmax=800)
![022 022](http://lh3.ggpht.com/-fPGJdfOEakU/U8vQ0NuX0jI/AAAAAAAAChI/Jz-e6yjJ4Gs/022_thumb%25255B1%25255D.png?imgmax=800)

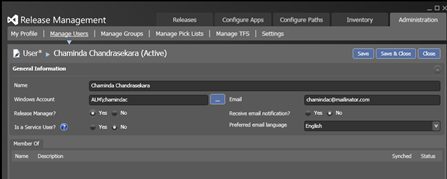

Release manager is the super user role in Release Management Server.
![023 023](http://lh3.ggpht.com/-kK24beXMEv8/U8vQ1__MfsI/AAAAAAAAChY/T-qvyuFFZgo/023_thumb%25255B1%25255D.png?imgmax=800)

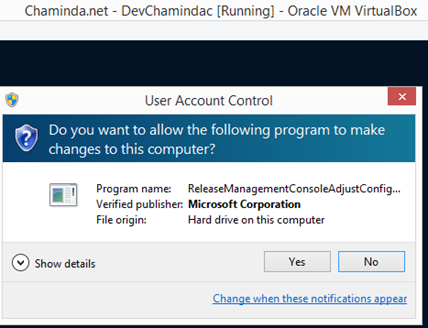

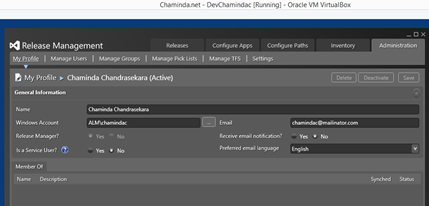

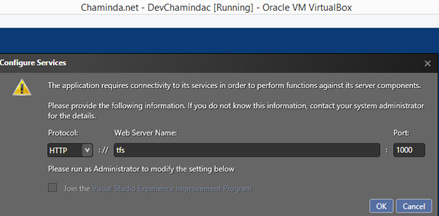

The user should be able to connect to the Release Management Server from a remote machine using the Release Management Client.
![025 025](http://lh6.ggpht.com/-u73ek2qrLfM/U8vQ3U3JryI/AAAAAAAACho/B2BeRp2FOCY/025_thumb%25255B1%25255D.png?imgmax=800)
![026 026](http://lh4.ggpht.com/-SHaaPy9QGtI/U8vQ5ERAS_I/AAAAAAAACh4/LZ0uC0NRQx8/026_thumb%25255B1%25255D.png?imgmax=800)
![027 027](http://lh6.ggpht.com/-lsXRTYGnVho/U8vQ65wbE9I/AAAAAAAACiI/QBtLkWa7O9w/027_thumb%25255B1%25255D.png?imgmax=800)
We have setup a Release Management Server, and Release Management Client accessing the server from a remote machine successfully. Next step is to set up Deployment Agent(s).
