Setup Servers & Environments for VS 2013 Release Management

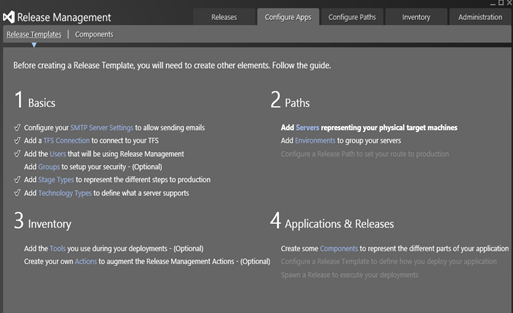

Another prerequisite to getting VS Release Management to automate release workflow is setting up the Servers & Environments. To register as a Server in VS Release Management, machine should be first installed with Microsoft Deployment Agent.
001
Note - The above view in Configure Apps only available until all mandatory steps are done only. It disappears after all mandatory configurations are once done. Items shown in above can be accessed in different tabs and section in the release management client.
1. Registering Server
In VS Release Management Client click on Configure Apps –> Add Servers link or Click on Configure Paths –> Servers
002
Click on New –> Scan For New to find available Deployment Agent installed and configured machines.
003

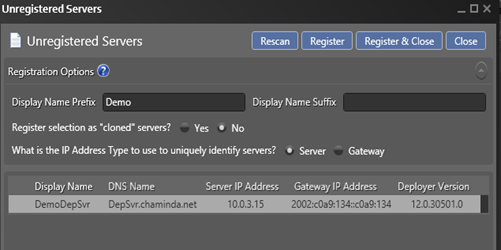

Optionally enter a prefix or suffix and Click on Register button to register the server found.
004
 005

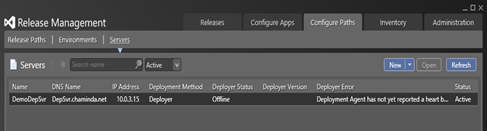

Machine get registered as a server and initially shown as offline.
006
Once the heartbeat is received from deployment agent to release management server, machine shows as ready.
007
Next step is creating environments, with successfully registered servers.
008
2. Setup environment
Click on Environments link in Configure Apps  or in Configure Paths click on Environments.
009

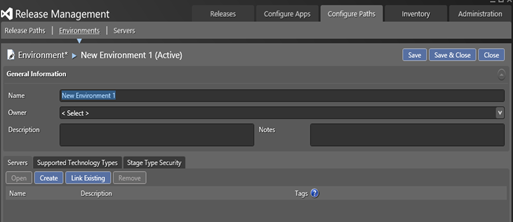

Click on New to create new environment.
010

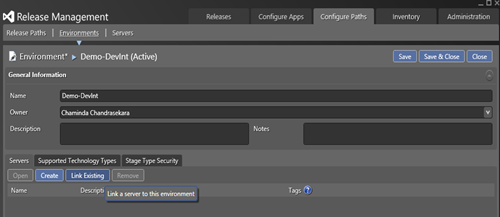

Provide a Name and click on Link Existing to link registered servers to the environment.
011

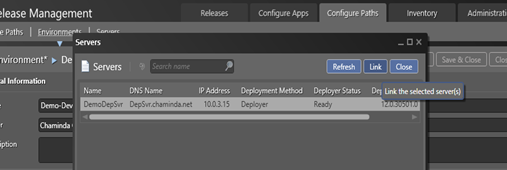

Select the available server(s) and click Link.
012
You can add tags. These tags are useful when setting up release templates. The tag can be used instead of Server name which allows copying templates workflow steps easily between different stages in the release template.

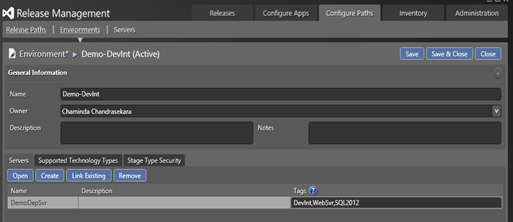

First environment is created as DevInt (Dev. Integration)
013
Stage Type Security can be used to restrict the stages in release path that the environment can be used.
013_1
For demo purpose QA and Production environments set up with same Server. In practical scenario these will be different servers. and environment may contain multiple servers linked.

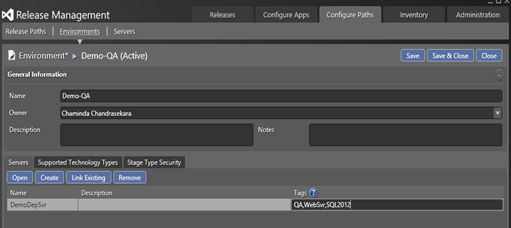

QA
014
Production
015

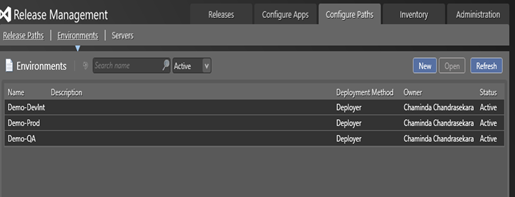

Servers and Environments configuration is successfully completed.
 016
017
